S 2100 UL
|
S 2100 UL
|
S 2100 UL
|
|
|
|
|
4 cylinder 4 stroke air cooled engine with horizontally opposed cylinders, hydraulic valves, automatic carburetor, mechanical fuel pump, magneto single or magneto-electronic dual ignition, wet sump pressure lubrication.
(pdf 2100 UL)
|
|
|
|
|

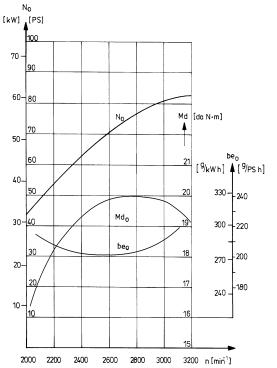

Maximum Power
|
58 KW / 80 HP @ 3000 rpm
|
|
Continous HP
|
54 KW / 74 HP @ 2700 rpm
|
|
Displacement
|
2136 cm³
|
|
Bore
|
90 mm
|
|
Stroke
|
84 mm
|
|
Compression ratio
|
9,0 : 1
|
|
Ignition single / dual
|
Magneto / Sauer electronic
|
|
Spark plugs
|
BERU 14-6DU / BOSCH W6DC
|
|
Firing Order
|
1-3-2-4
|
|
Firing point
|
25° BTDC
|
|
Carburetor
|
altitude compensated
|
|
Fuel min. oktane
|
98 RON
|
|
Mechanical fuel pump
|
Sauer Type
|
|
Starter
|
12 V – 0,8 KW
|
|
Generator
|
14 V – 200 W
|
|
Oil pressure
|
max. 4,5 bar, min 2 bar @ 2500 rpm
|
|
Oil temperature
|
min. 50°C - max 120°C
|
|
Oil capacity
|
3 ltrs
|
|
Cylinder head temperature
|
max. 200°C
|
|
Propeller drive
|
direct drive, anti-clockwise
|
|
Dry weight
|
approx.64 Kg
|
|
Fuel consumtion in cruise
|
10-12 ltrs
|
|
Type Certificate No.
|
4608 / UL
|
|
|
|
|
