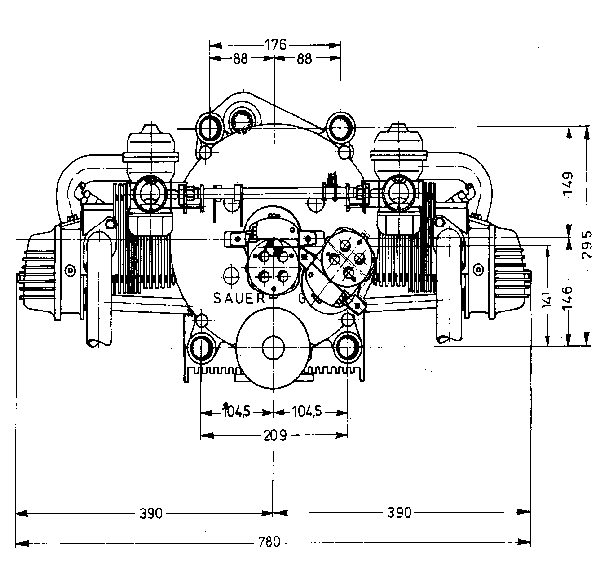

Technische Daten S 2500 ( )
|
|
|
|
|
|
|
|
1.
|
Displacement
|
2481 cm3 / 151cu in
|
|
|
2.
|
Compression Ratio
|
9.5 : 1
|
|
|
3.
|
Bore
|
97 mm
|
|
|
4.
|
Stroke
|
84 mm
|
|
|
5.
|
Min Power output
|
92hp / 68kw @ 3000 rpm
|
|
|
6.
|
Oil Content
|
3.5 Liters
|
|
|
7.
|
Oil Cooler (upon demand)
|
Ch 1220/4
|
|
|
8.
|
Oil temperature range
|
40 — 120°C / 104F - 250F
|
|
|
9.
|
Öil pressure range
|
2.5 — 4.5 bar
|
|
|
10.
|
Ignition System
|
Slick 4330 Single- or Dual combined
|
|
|
|
|
ignition - optionally for automotive spark plugs
|
|
|
11.
|
Fuel Type
|
Avgas 100 LL or unleaded 98 octane
|
|
|
12.
|
max Cylinder head temperature
|
230°C / 450 F
|
|
|
13.
|
Generator
|
14 / 18 / 45 Amp. 12 V
|
|
|
14.
|
Starter
|
1 : 3.7 / 12 V
|
|
|
15.
|
Carburettor
|
1 x Bing 94/40 or 2 x Bing 64/32
|
|
|
16.
|
Cooling
|
4 x System Sauer
|
|
|
17.
|
Hydraulic Valve Tappets
|
8 x H 190
|
|
|
|
|
|
|
|
18.
|
Dry Mass
|
starting at 74 kg / 184 lb
|
